5V 100A Prismatic Battery Capacity Tester Charging Discharge

Name: 5V 100A Prismatic Battery Capacity Tester Charging Discharge
Brand: XWELL
Price: 7900 USD

Brand Name : XWELL

Model Number : XW-64

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : USD 7900/pcs

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100 pcs per month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Detecting parameter : capacity tester

Color : White

Voltage and current : 5V/10A; 5V/20A; 5V/30A

Heat dissipation : to enter the air naturally and exhaust the air upward

Overall energy saving : over 70%

Voltage measuring range : 0-5V, 1MV resolution

Battery voltage range : Charge 0-4.5V: Discharge 4.5-2V

Constant voltage range : 2.5V-4.5V

voltage accuracy : ±(1‰ reading +1‰ full)

Control mode : Computer connection equipment work, FCL control

Contact Now

5V100A Prismatic Battery Capacity Tester Charging Discharge

System functions :

1. Battery cycle life test

2.Battery capacity test

3.Battery charging/discharging characteristics test

4. Battery charge retention test

5.Battery charging/discharging efficiency test

6. Battery overcharge/over-discharge rate endurance test

AC input interface

1. Input three-phase five-wire AC380V

2. Input current: 73A, 100A-3P circuit breaker recommended

3.3. Frequency 50Hz

4.4.THD≦3%

5.5. Power factor > 0.99 (rated power)

6.6. Charging efficiency 85% (whole machine) 7.7. Bus feedback efficiency is 92%

Product Specification

Working power			Three-phase five-wire system AC380V±10%, 50HZ
Work environment			Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation			to enter the air naturally and exhaust the air upward
Overall energy saving			over 70%
Channel Parameter
Voltage measuring range			0-5V, 1MV resolution
Battery voltage range			Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range			2.5V-4.5V
voltage accuracy			±(1‰ reading +1‰ full)
Current accuracy			±(1‰ reading +1‰ full)
Software Function
Control mode			Computer connection equipment work, FCL control
Communication mode			RS485 baud rate 57,600
Process set			A maximum of 32 work steps and 256 cycles are se
Charging mode			Constant current, constant pressure
Charging cutoff condition			Voltage, current, time, capacity
Discharge			constant current
Discharge cut-off condition			Voltage, time, capacity
Defensive function			Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range			Set it anywhere from 0 to 30,000 minutes
Time accuracy			≤±1‰
Sampling inspection period			≤3S
Minimum frequency of data recording			≤5S
Battery sorting			By capacity, time, discharge platform, etc
Data processing			Data, graphs, and loop diagrams

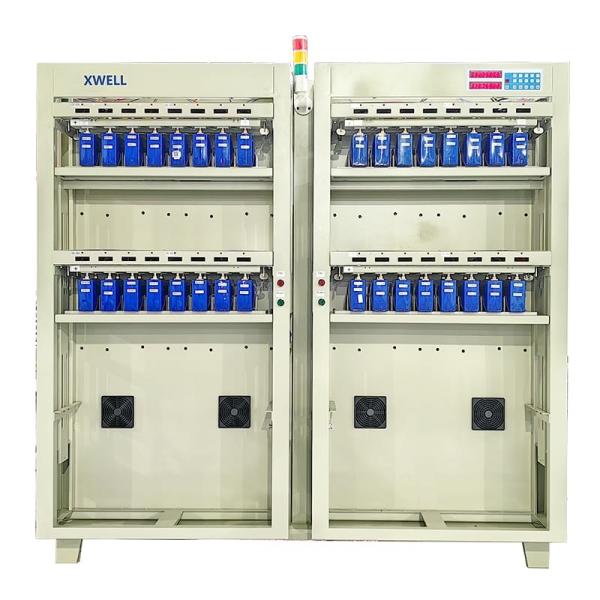

5V 100A Prismatic Battery Capacity Tester Charging Discharge

XWELL can provide different fixtures for different types of cells

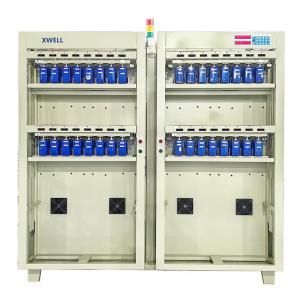

5V 100A Prismatic Battery Capacity Tester Charging Discharge
